Keragon

The Keragon integration connects your Kickcall account with Keragon so you can bring AI-powered phone calls into your healthcare automation workflows. Once connected, you can trigger outbound calls from a Keragon workflow, pass patient or lead information into your Kickcall AI agent, and pull call details back to decide what happens next - all inside Keragon's HIPAA-compliant environment.

What you can build: patient intake follow-up, appointment reminders and confirmations, lead qualification, insurance verification hand-offs, post-visit check-ins, no-show recovery calls and any other workflow-based phone automation across your connected EHR, CRM or intake tools.

Step 1: Connect Kickcall to Keragon

Before you build a phone call workflow, connect your Kickcall account to Keragon. You need an active Kickcall account and a Kickcall API key.

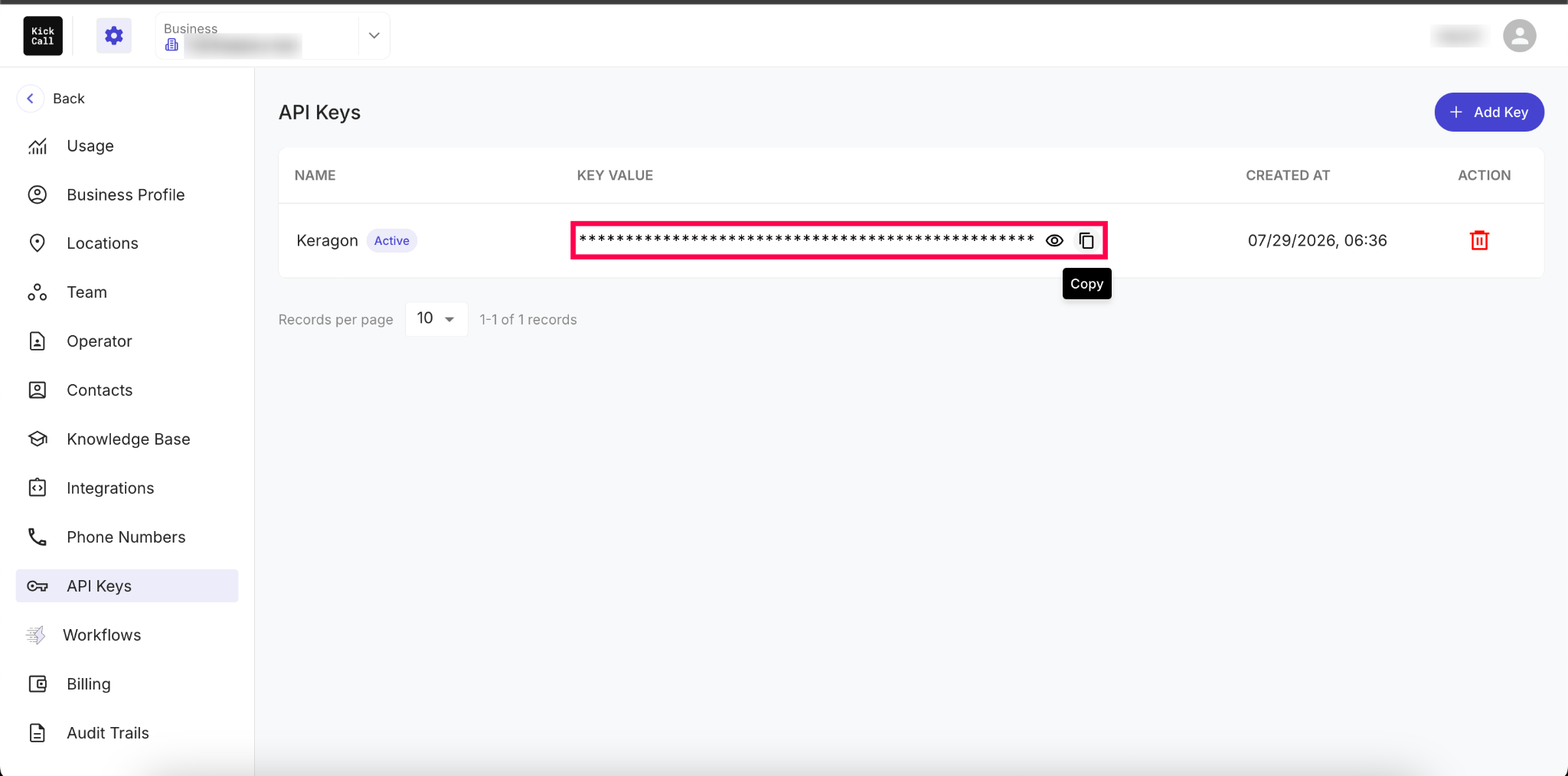

Get your Kickcall API key

1. Log in to your Kickcall dashboard.

2. Go to API Keys in the left sidebar.

3. Create a new key, or copy an existing one.

4. Store the key securely - you will need it during the Keragon connection.

Install Kickcall AI in Keragon

1. Open the Keragon workflow builder and open (or create) the workflow you want to add Kickcall to.

2. Click the + icon to add a new step.

3. Search for Kickcall AI in the module picker.

4. Select the action you want to configure first - Create Phone Call or Get Call.

5. When prompted to connect an account, choose Add new connection.

6. Enter your Kickcall connection details: the API key and the email address associated with your Kickcall account.

7. Complete the authentication step to save the connection.

Once the connection succeeds, Kickcall actions become available inside Keragon workflows and can be reused across any workflow in the same Keragon workspace.

Step 2: Create a phone call workflow

Create a Keragon workflow that will trigger the outbound call. Common triggers include:

• A new patient intake form is submitted (Jotform, Google Forms, Typeform and similar)

• A new lead or contact is created in your CRM

• An appointment is created, or its status changes, in your EHR

• A patient is tagged for follow-up, a missed appointment or an elevated intake score, for example

• A record enters a specific stage or pipeline in a connected tool

• A webhook is received from any system Keragon supports

A simple workflow looks like this: New Intake Form Submitted → Create Phone Call → Check Call Status → Update Patient Record.

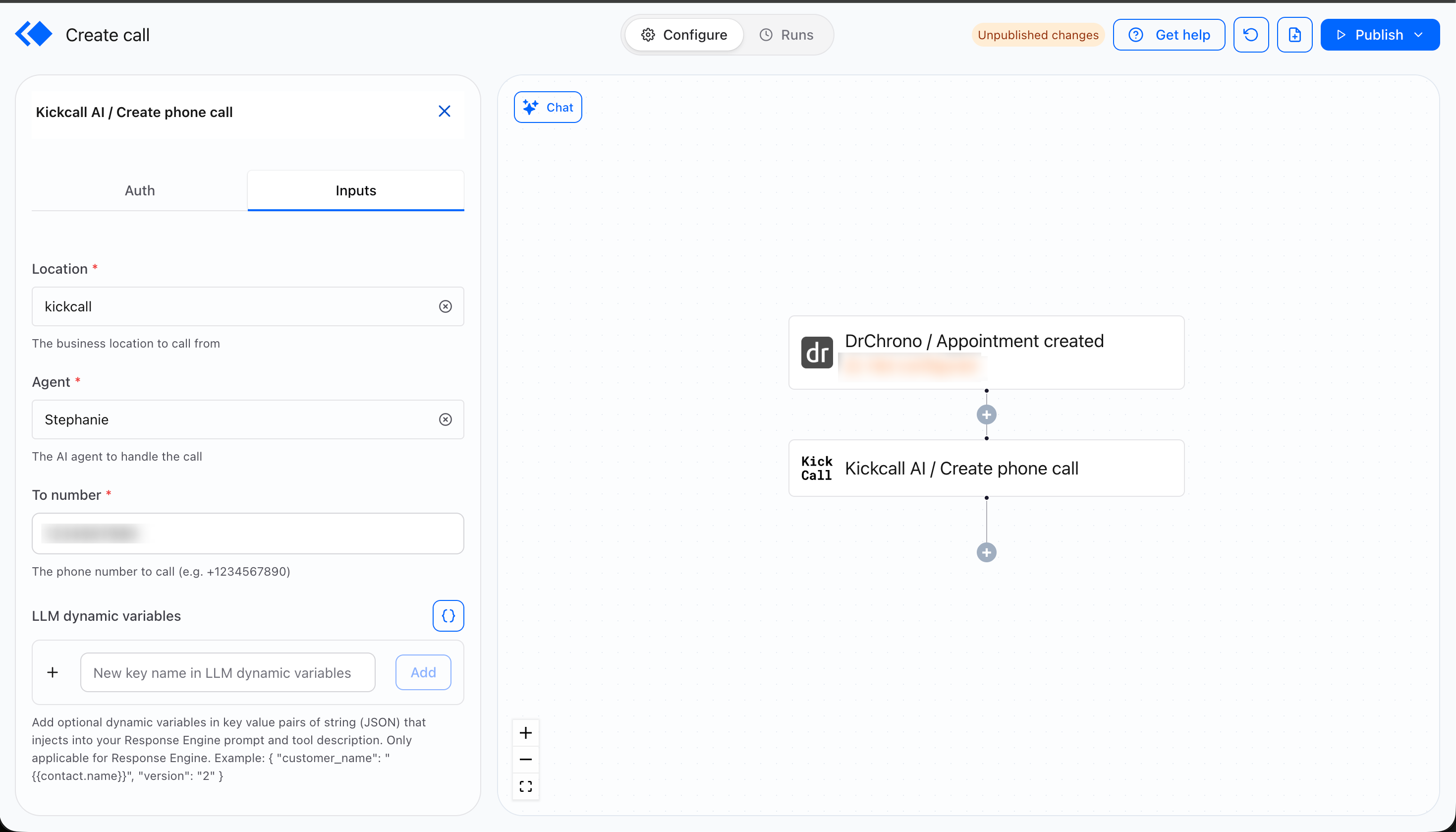

Step 3: Configure the Create Phone Call module

1. Open your workflow.

2. Click the + icon after your trigger, or after a condition or filter node.

3. Search for Kickcall and select Create Phone Call.

4. Fill in the required fields, add optional fields if needed, and save the module.

Required fields

• Location - the Kickcall business location the call is created from. This is a dynamic dropdown that fetches the locations available in your Kickcall account, so you simply pick one from the list.

• Agent - the Kickcall AI agent that will handle the outbound call. Once you select a Location, this dropdown populates with the active agents for that location.

• To Number - the phone number Kickcall should call. Map this from your trigger data, for example {{trigger.phone}} or the patient's phone number from your EHR trigger.

Optional - LLM Dynamic Variables

Use Kickcall LLM Dynamic Variables to pass information from Keragon into the AI agent - patient name, appointment time, reason for visit or anything else the agent should know before it speaks. Variables are supplied as JSON, so keep the syntax valid and only send the fields your workflow genuinely needs. This field applies to the Response Engine only.

{
"customer_name": "{{trigger.full_name}}",
"appointment_time": "{{trigger.appointment_time}}",
"reason_for_visit": "{{trigger.reason}}"
}

Step 4: Store the Interaction ID

When Create Phone Call runs successfully, Kickcall returns details about the new call, including the Interaction ID - the unique identifier for that call.

{ "meta": { "message": "Call queued" }, "data": { "interaction_id": 21204, "status": "queued" } }

Save it against the record it relates to, so you have a reusable reference later:

1. If your connected EHR or CRM supports custom fields, create one - for example Kickcall Last Interaction ID.

2. Add an Update Record module (or the equivalent) after Create Phone Call.

3. Map the returned interaction_id into that field.

A typical pattern is: Create Phone Call → Condition (if status = queued) → Update Record → store the Interaction ID.

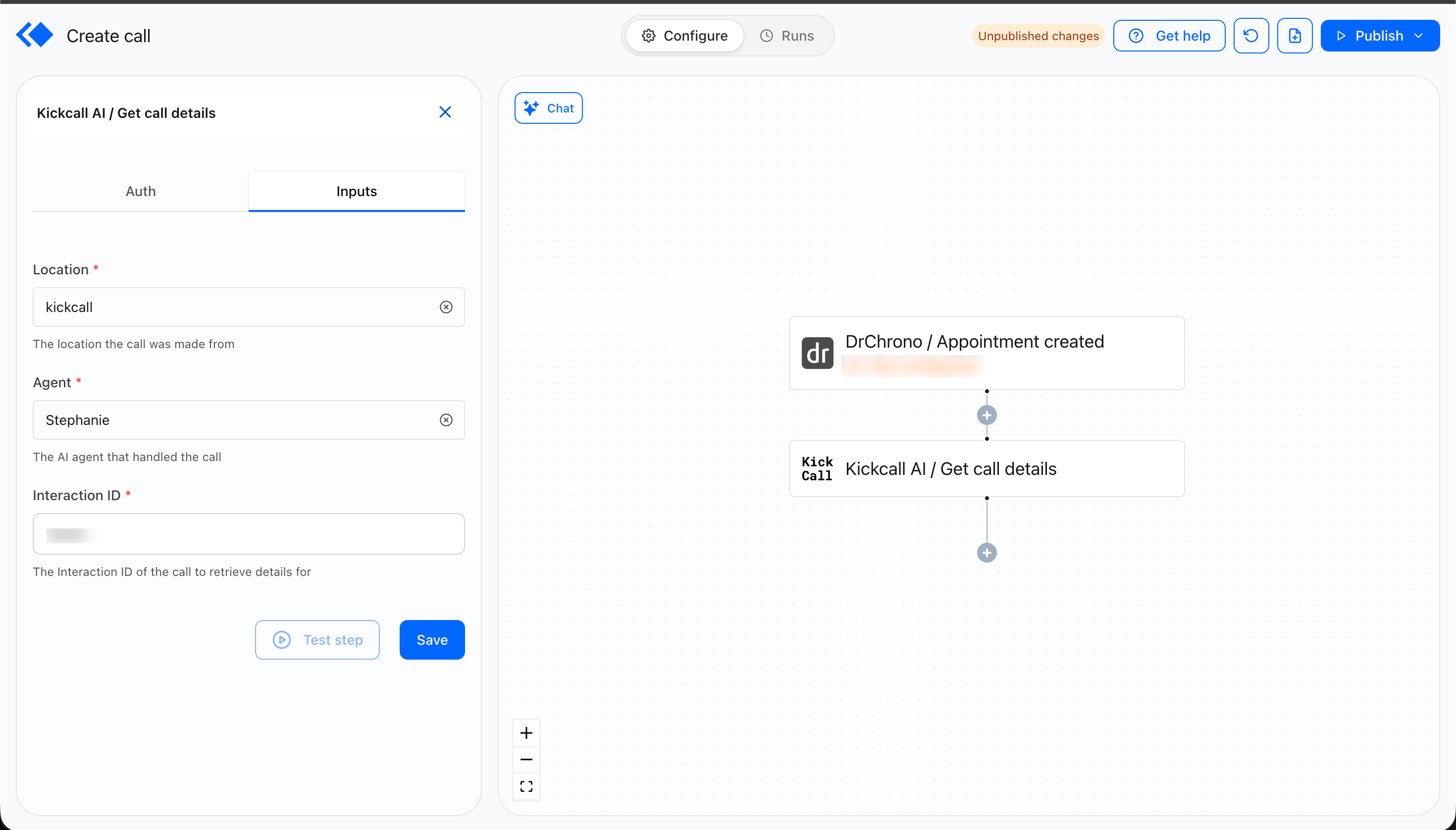

Step 5: Retrieve call details

Use the Get Call Details module to pull information about a call you created earlier, such as:

• Call status

• Call duration

• Call summary

• Hangup reason - the friendly end reason, the customer reason and similar

• Intent signals, such as the caller persona

1. Add a new module after your call step, or in a separate workflow triggered later.

2. Search for Kickcall and select Get Call Details.

3. Select the same Location and Agent from the dynamic dropdowns that were used to create the call.

4. Provide the Interaction ID - if you stored it on the record, reference that field, for example {{record.kickcall_last_interaction_id}}.

5. Save the module.

Step 6: Build your workflow automation

With Create Phone Call and Get Call Details in place, Keragon's condition and filter logic does the rest:

• Add a Condition module after Get Call Details to branch on call status - completed, no-answer, failed or voicemail.

• On a completed call, route to an Update Record module to log the outcome and the call summary.

• On a no-answer or failed call, route to a retry branch, or hand off to a Slack or email notification for staff follow-up.

• Use the call summary or intent signals returned by Get Call Details to trigger downstream actions, such as flagging a record for manual review.

A full example looks like this: Trigger → Create Phone Call → Update Record (Interaction ID) → Get Call Details → Condition (call outcome) → branch action.

Troubleshooting

• Call failed to initiate - usually an incorrect or unsupported phone number format. Check the number includes a valid country code and is formatted as E.164, and add a Format Text module before Create Phone Call if needed.

• Authentication failed - the Kickcall API key is invalid or expired. Generate a new key in your Kickcall dashboard and reconnect the Kickcall connection in Keragon.

• Agent is not responding - the Agent ID is incorrect or the agent is inactive. Confirm the ID in your dashboard and make sure the agent is active.

• Get Call does not return the expected information - the Interaction ID is missing or incorrect. Confirm the ID returned by Create Phone Call was stored before Get Call runs.

• Workflow runs but no call is placed - an upstream trigger condition filtered the record out, or the workflow is still in draft or test mode. Check the Keragon run history and confirm the workflow is published and active.

If you still need help, submit a ticket to the Kickcall support team and include your Kickcall account email, the Keragon workspace and workflow name, the Kickcall module being used, the Interaction ID, the error message and a screenshot of the module configuration. That detail lets the team resolve the issue much faster.
